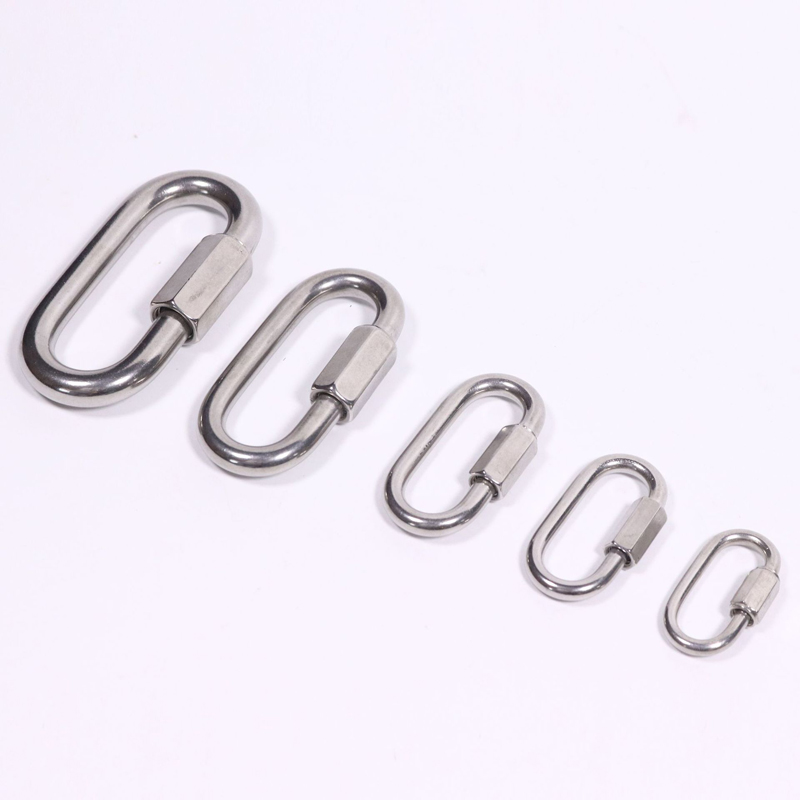

Quick Lock
Stainless steel

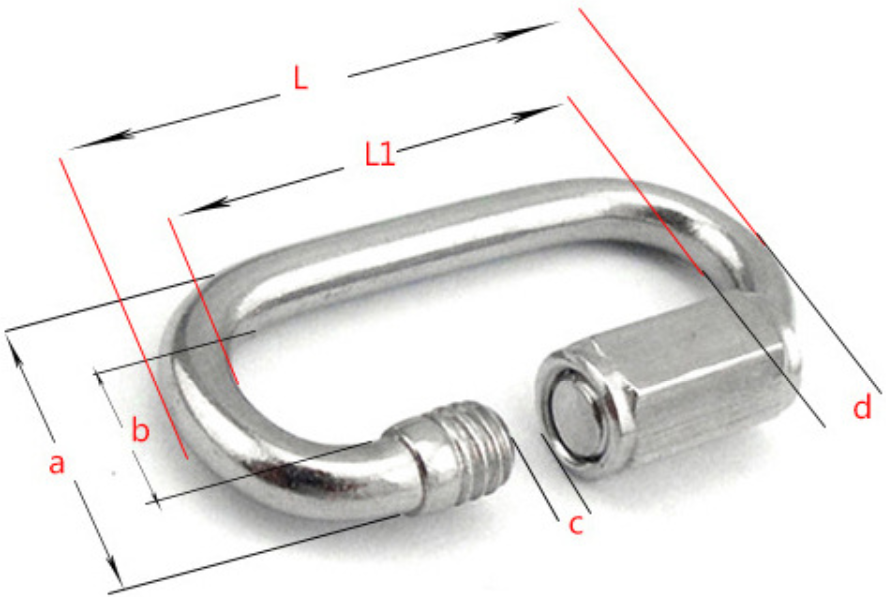

Specification
a Outside width(mm)
b Inner width(mm)
C Opening width(mm)
d Rod diameter(mm)
L1 Inner diameter length(mm)
L2 Outer diameter length(mm)
M3.5
17
10
5
3.5
29
36
M4
19
11
5.5
4
31
39
M5
23
13
6.5
35.5
48
M6
26
14
7.5
6
45
57
M8
33
10.5
8
58
74
M10
40
20
12
69
89
M12
47
15
80
104
